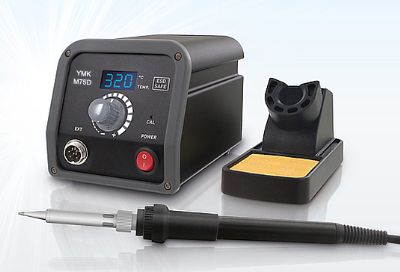

Model : YMK M-75D

  This soldering station is an affordable start into the professional Soldering. The M-75D is characterized by an easy operation and her universal application field.

  The temperature is easy to set using a potentiometer. The control technology was adopted from the professional sector. The integrated temperature sensor in the soldering iron and the ceramic heating element for achieves precise temperature control, which ensures a stable temperature, a fast heat recovery and avoids overheating of the parts to be soldered. The set and the measured temperature is displayed on a large LED display. A toroidal transformer is providing power of 75W, enabling the use of lead-free solders. The built-in equipotential bonding allows to solder also to sensitive electronic components.

Characteristics

---

■ LED-Display

■ Infinitely adjustable temperature setting
■ Temperature range 200 – 480°C
■ High-power ceramic heating element
■ Coated aluminum housing

Product specifications

---

Soldering station host
Power	55W	75W	90W
Output voltage	AC24V,50/60HZ	AC27V,50/60HZ	AC30V,50/60HZ
Temperature range	200~480 °C
Maximum ambient temperature	42 °C
Temperature stability	±5 °C (no load)
Housing Material	Aluminum Alloy
Size	110*105*165mm
Net weight	2.0KG	2.2KG	2.3KG

Soldering iron
Power consumption	55W	75W	90W
Tip-to-ground resistance	＜2Ω
Tip-to-ground voltage	＜2mV
Tip-charged body IR	＞5MΩ
Electromagnetic heating core	Resistance heater
Iron cord	1.2m
handle length	20cm
Weight	85g

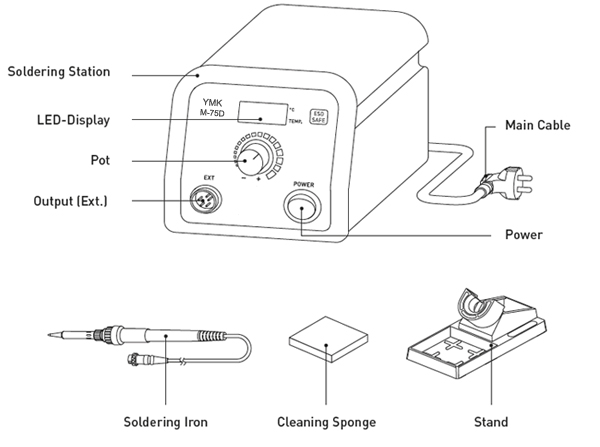

Included in delivery

---

Packing list

No.	Part Name			Quantity	Description
1	soldering station			1set	aluminum case
2	soldering iron			1pcs	high-frequency heating
3	iron frame			1pcs	cast aluminum
4	cleaning sponge			1pcs	high temperature
5	Manual (including warranty card)			1pcs	128coated paper
