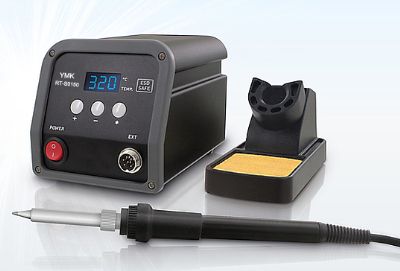

View Big ImageModel : YMK RT-S0150
Soldering Station for professional use. These station offer additional functions required in a professional environment, e.g. an electronics manufacturing.
These include automatic standy-by / shutdown functions, password protection, which protects against unauthorized changes to settings and the ability to calibrate tools. A potential equalization to protect sensitive components is also available. The power of 150W offer sufficient power reserves for rapid and reliable work with lead-free solders. The high-frequency control in connection with the heating element and the temperature sensor near the tip allows for an extremely fast up- or reheating.
Characteristics
■ Microprocessor-controlled
■ High frequency induction heating
■ Standby and shutdown functions
■ Coated aluminum housing
■ Easy to change soldering tips
Product specifications
| Soldering station host | |||
| Model |
RT-S0100
|
RT-S0150
|
RT-S0180
|
| Power |
100W
|
150W
|
180W
|
| Output voltage |
AC36V,380KHZ
|
||
| Temperature range |
50~600 °C (depending on the mode setting)
|
||
| Maximum ambient temperature |
42 °C
|
||
| Temperature stability |
±1 °C (in still air, no load)
|
||
| Heating Time 23°C–350°C |
15 Seconds
|
13 Seconds
|
28 Seconds
|
| Housing Material |
Aluminum Alloy
|
||
| Size |
110*105*165mm
|
110*105*175mm
|
110*105*175mm
|
| Net weight |
2.5KG
|
2.6KG
|
2.8KG
|
| Soldering iron | |||
| Power consumption |
95W
|
145W
|
175W
|
| Tip-to-ground resistance |
＜2Ω
|
||
| Tip-to-ground voltage |
＜2mV
|
||
| Tip-charged body IR |
＞5MΩ
|
||
| Electromagnetic heating core |
Electromagnetic heating core
|
||
| Iron cord |
1.2M
|
1.8M
|
|
| handle length |
20cm
|
||
| Weight |
100g
|
105g
|
155g
|

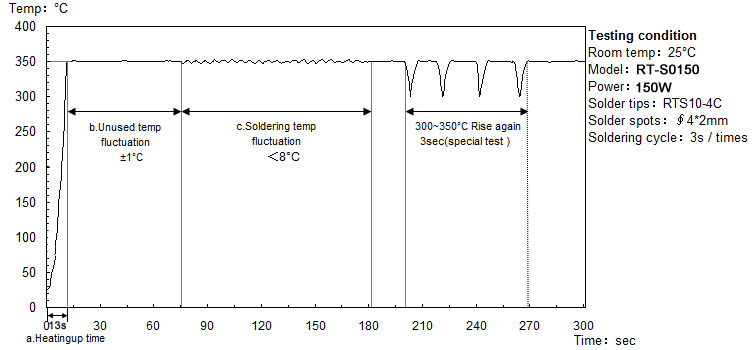

Temperature graph

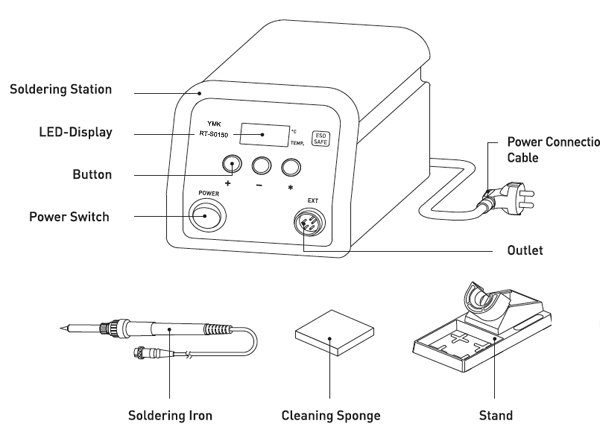

Included in delivery
Packing list
| No. | Part Name | Quantity | Description | ||||
| 1 | soldering station | 1set | aluminum case | ||||
| 2 | soldering iron | 1pcs | high-frequency heating | ||||
| 3 | iron frame | 1pcs | cast aluminum | ||||
| 4 | cleaning sponge | 1pcs | high temperature | ||||
| 5 | Manual (including warranty card) | 1pcs | 128coated paper | ||||
